Nature's Generator Powerhouse Platinum WE System Solar & Wind

Nature's Generator - Powerhouse Platinum - WE System - Solar+Wind Home Generator Overview

At A Glance:

Powerful Whole House Solution: The Nature's Generator Powerhouse is a 120V/240V 7200W whole house generator, with a 4800Wh battery providing dependable home battery backup. Capable of powering everything from small devices to heavy-duty appliances, this system is ideal for anyone seeking a reliable electric generator for home, delivering consistent power for all your home generator system needs.

Expandable Design: This system features an expandable design, allowing for additional battery units and solar panels to meet larger energy demands over time. It’s a perfect choice for those looking to scale their generator system with growing power needs, ensuring reliable performance for years to come.

Home Integration Ready: With transfer switch or power inlet box options, the Nature's Generator Powerhouse offers seamless integration, providing back up power for home circuits during outages. It's the perfect generator to powerhouse, ensuring your essential systems stay operational during emergencies.

Flexible Battery Compatibility: Works with both SLA and LiFePO4 batteries for versatile power options and extended lifespan. As the best electric generator for home use, it guarantees long-term reliability and consistent power for your household.

Reliable 240V Generator for High-Power Needs: Equipped with a 240V outlet, this generator is capable of supporting large appliances and heavy-duty equipment, providing dependable power for intensive applications. It’s a trusted power station generator for households with high energy demands, making it a great solution for all your residential generators needs

Multi-Charging Options: The Nature's Generator Powerhouse supports solar, wind, and AC charging, providing multiple energy inputs for sustainable power. Whether you need a power inverter generator or simply want to harness renewable energy sources, this system offers the flexibility to use various charging options.

User-Friendly Display: The LED display shows real-time data such as battery levels, wattage usage, and remaining power time, allowing you to easily monitor your generator system and ensure you have enough power to keep everything running smoothly.

Peace of Mind and Flexibility: Whether you're looking for a whole home backup generator or need an emergency generator for home use, the Nature's Generator Powerhouse provides the ultimate backup power generator solution. It offers peace of mind and reliable power during emergencies, power outages, or off-grid setups.

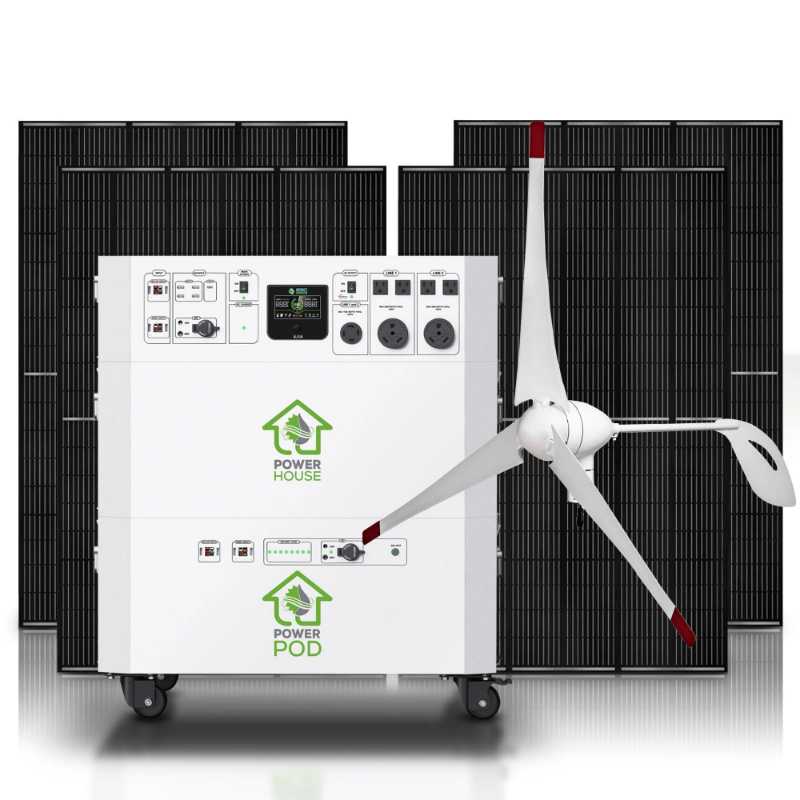

Nature’s Generator Powerhouse Platinum System:  Consists of the Powerhouse, four 410W Power Panels (Plus consists of eight Power Panels), one Powerhouse Wind Turbine to harness the energy of the wind, and one Powerhouse Power Pod that allows you to increase the battery capacity.

• 120VAC and 240VAC up to 7200W Pure Sine Wave

• 9600Wh Batteries Included

• 4x 410W Mono PERC Solar Panel Set

• 1x Nature’s Generator Powerhouse Wind Turbine Set
• *Disclaimer: Our solar panels include the necessary connectors and wires but do not include any tools, hardware (mounting kit sold separately), etc. We highly recommend having the solar panels professionally installed by a certified installer.

A Closer Look:

Nature's Generator Powerhouse+(1) Power Pod

• AC Output
  • 2 x 3600W 120 Volt
  • 1 x 7200W 240 Volt

• DC Output

  • 4 x USB Type A   2 x 12 Volt Output
  • 1 x USB Type C   2 x 48 Volt Output

  • 2 x 12V DC Port

• Capacity
  • 9600 Wh (Expandable with Power Pod)

• Charging Input
  • Up to 4000W Solar Input

  • Up to 2000W Wind Input

  • 1300W AC Wall Outlet Input

Nature's Generator Powerhouse Specifications:

• Inverter

• • Output Power: 7200 watt max

  • Output voltage: 240V Split Phase

  • Output voltage: 120V Single Phase

  • Output frequency: 60Hz

  • Output Sine Wave: Pure sine wave

  • Output Phase: Split phase

• Battery

• • Type: AGM Sealed Lead Acid

  • Capacity: 48V 100Ah (4800Wh)

  • Self-discharge: Recommend to recharge every 4 months

• Ports

• • USB -A Port:  5V, up to 3A (15W)

  • 12V DC Port: up to 20A (240W max)

  • Expansion Port: 350A fuse

• Charges

• • AC Charger: 1300W, 120V AC

  • AC Charger Indicator: red (charging) and green (charged)

  • Solar Charger: 2000W

  • Wind Charger: 1000W

• Dimensions
  • Powerhouse: 28 x 18 x 19 inches (720*466*472.8mm)

  • Powerhouse with wheel: 28 x 18 x 22.36 inches (720*466*568mm)

• Operating Temperature
  • 32-104 °F (0-40 °C)

• Storage Temperature
  • 23–111 °F (-5–45 °C)


• Weight
  • 434 lbs (197 kg)

Nature's Generator Powerhouse Power Pod Specifications:

• Battery

• • Type: AGM Sealed Lead Acid

  • Capacity: 48V 100Ah (4800Wh)

  • Self-discharge: Recommend to recharge every 4 months

• Dimensions
  • Powerhouse : 28 x 18 x 19 inches (720*466*472.8mm)

  • Powerhouse with wheel: 28 x 18 x 22.36 inches (720*466*568mm)

• Charges

• • Solar Charger: 2000watt

  • Wind Charger: 1000watt

  • Battery Level LED lights: 8 LED lights
• Ports

  • 12V Socket: 10A max

  • 12V Port: 10A max

  • 48V Port: 5A max

  • Expansion Cable: 43 inch

• Storage Temperature

• • 23–111 °F (-5–45 °C)

• Operating Temperature
  • 32-104 °F (0-40 °C)

• Weight

• • 295 lbs. (134 kg)

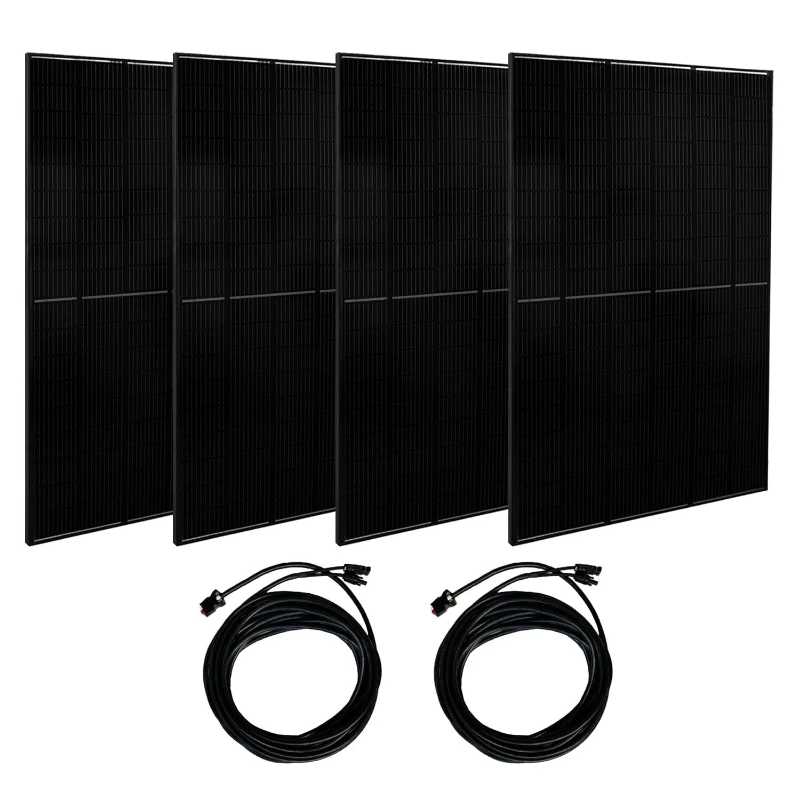

Nature's Generator Powerhouse Power Panel:

• Power Rating and Characteristics

• • Maximum Power (Pmax): 410W

  • Cell Type: Mono PERC 182×91mm

  • No.of Half-cells: 108 (6×18)

  • Frame: Anodized Aluminum Alloy

• Front Glass
  • 3.2mm, Anti-Reflection Coating, High Transmission, Low Iron, Tempered Glass

• Junction Box
  • IP68 Rated, connector compatible with MC4

• Fire Rating
  • UL: Type 1, IEC: Class C

• Dimensions
  • 1724×1134×30mm (67.87×44.64×1.18 inch)

• Operating Temperature
  • -40℃~+85℃ (-40°F ~+185°F )

• Output Cables
  • 1200mm (47.24 inch)

• Weight
  • 20.5 kg (45.19 lbs)

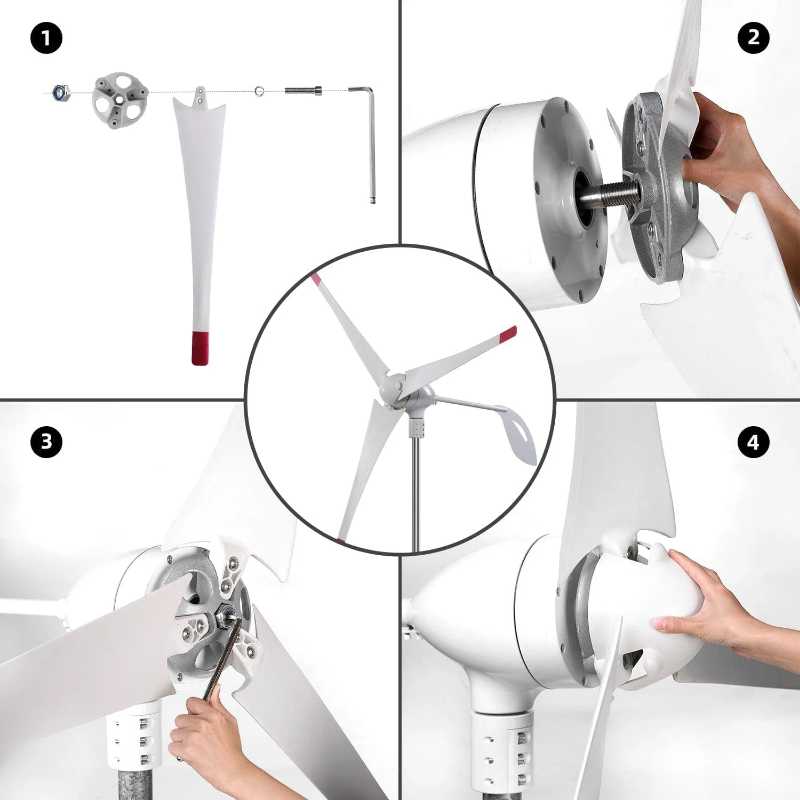

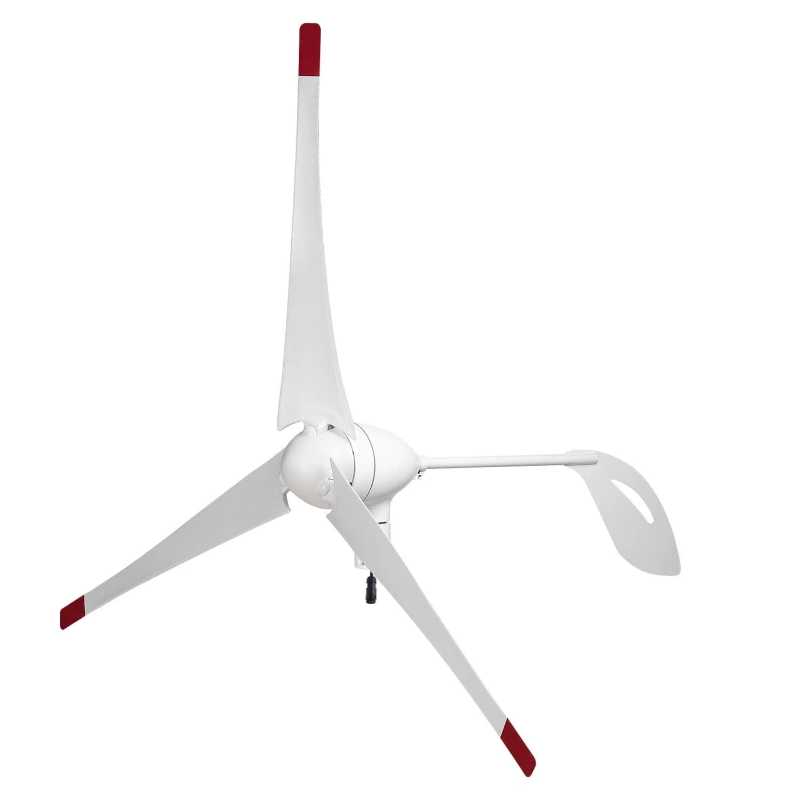

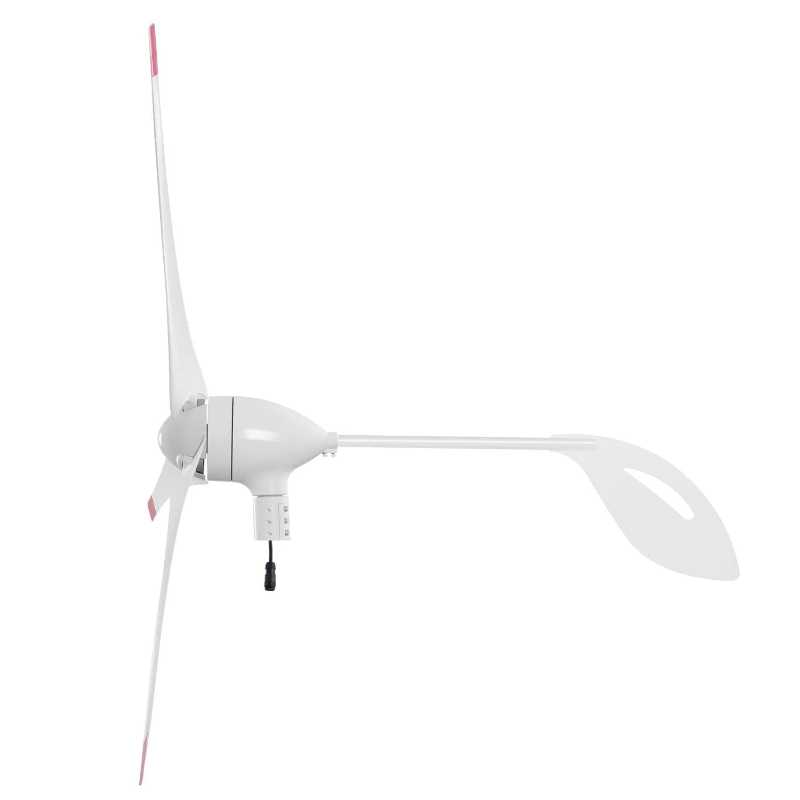

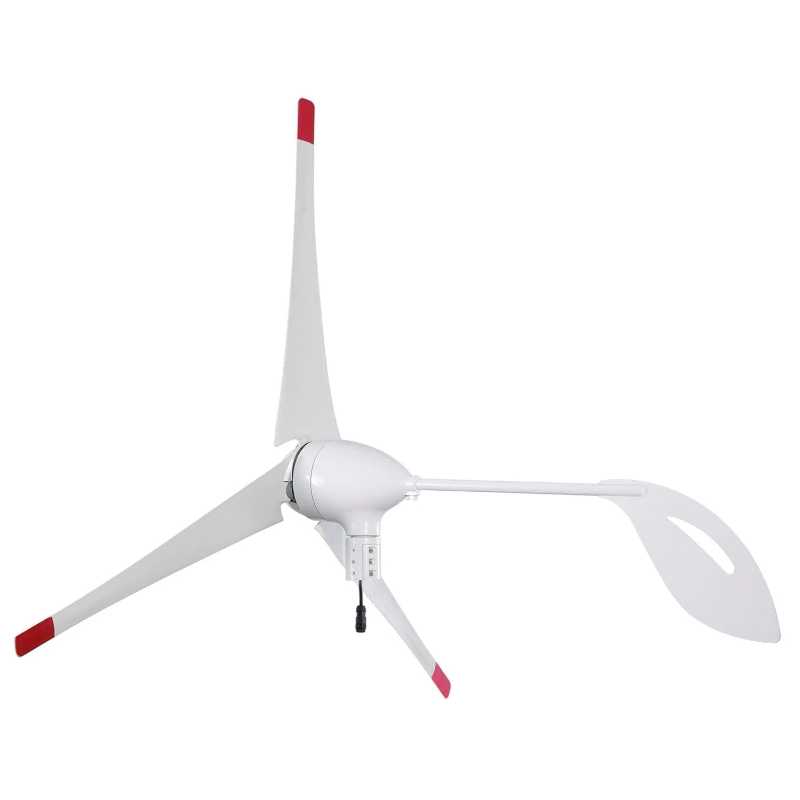

Nature's Generator Powerhouse Wind Turbine:

• Power Rating

• • Rated power: 350 watts @ 27 MPH

  • Maximum wind speed: 110 mph

• Material
  • Wind turbine blades: fiberglass nylon composite

  • Wind turbine body: cast aluminum alloy with powder coating

  • Wind turbine cable: 12AWG pure copper cable

• Connectors
  • Wind turbine cable connectors: weatherproof M19 3P connectors

  • Wind input connectors: Anderson connectors

  • Yaw: fits 1.5 Inch schedule 40 pipes or towers

• General

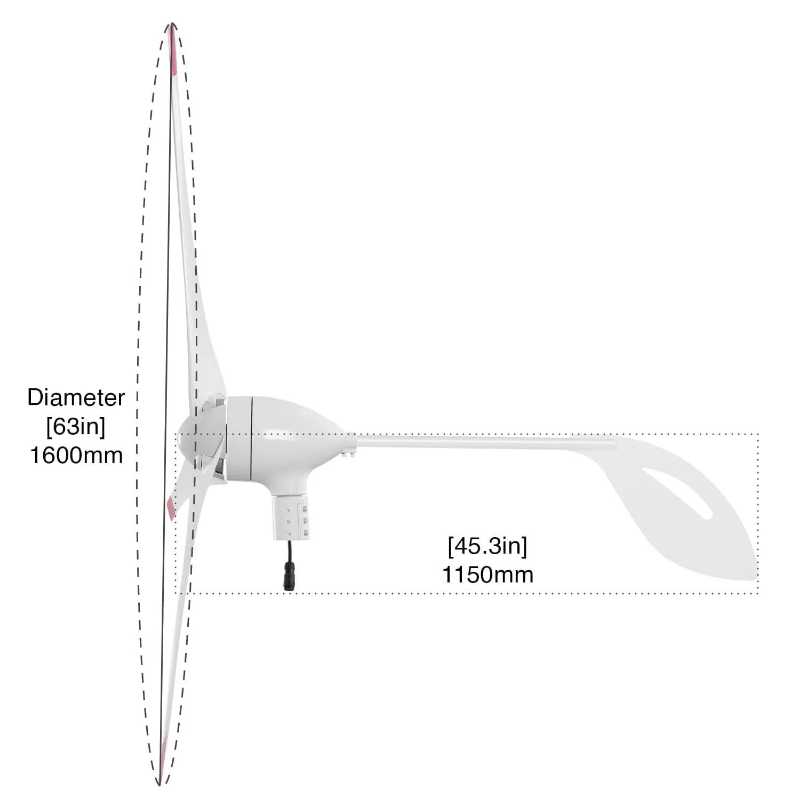

  • Rotor diameter: 63 in / 1.6 m

  • Weight: 37 lbs./17 kg not including cables and controller box

  • Certifications: CE Rohs

Nature's Generator Powerhouse:

• 1 x Nature's Generator Powerhouse Generator
• 1 x Nature’s Generator Powerhouse Battery Storage
• 1 x AC Power Cord
• User Guide

Nature's Generator Powerhouse Power Pod:

• 1 x Nature's Generator Powerhouse Power Pod

Nature's Generator Power Panels:

• 4 x Nature’s Generator Powerhouse Power Panels (Standard)
• 2 x Nature's Generator Power Panel Cables (Standard)
• 8 x Nature’s Generator Powerhouse Power Panels (Plus)
• 2 x Branch Connector (Plus)
• 2 x Nature's Generator Power Panel Cable (Plus)

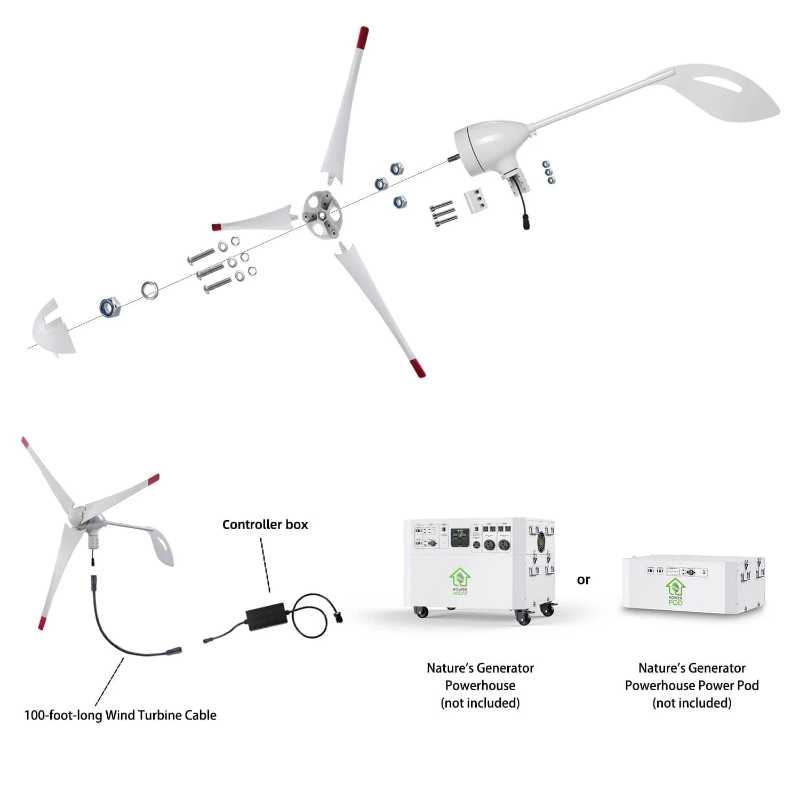

Nature's Generator Powerhouse Wind Turbine:

• 1 x Nature's Generator Wind Turbine
• 1 x Hub Nose cone
• 3 x Wind Turbine Blades
• 100ft wind turbine cable
• 1 x Controller box
• Hardware and tool bag

• User Guide
