Nature's Generator Powerhouse Gold PE System - Solar

At A Glance:

Powerful Whole House Solution: The Nature's Generator Powerhouse is a 120V/240V 7200W whole house generator, with a 4800Wh battery providing dependable home battery backup. Capable of powering everything from small devices to heavy-duty appliances, this system is ideal for anyone seeking a reliable electric generator for home, delivering consistent power for all your home generator system needs.

Expandable Design: This system features an expandable design, allowing for additional battery units and solar panels to meet larger energy demands over time. It’s a perfect choice for those looking to scale their generator system with growing power needs, ensuring reliable performance for years to come.

Home Integration Ready: With transfer switch or power inlet box options, the Nature's Generator Powerhouse offers seamless integration, providing back up power for home circuits during outages. It's the perfect generator to powerhouse, ensuring your essential systems stay operational during emergencies.

Flexible Battery Compatibility: Works with both SLA and LiFePO4 batteries for versatile power options and extended lifespan. As the best electric generator for home use, it guarantees long-term reliability and consistent power for your household.

Reliable 240V Generator for High-Power Needs: Equipped with a 240V outlet, this generator is capable of supporting large appliances and heavy-duty equipment, providing dependable power for intensive applications. It’s a trusted power station generator for households with high energy demands, making it a great solution for all your residential generators needs

Multi-Charging Options: The Nature's Generator Powerhouse supports solar, wind, and AC charging, providing multiple energy inputs for sustainable power. Whether you need a power inverter generator or simply want to harness renewable energy sources, this system offers the flexibility to use various charging options.

User-Friendly Display: The LED display shows real-time data such as battery levels, wattage usage, and remaining power time, allowing you to easily monitor your generator system and ensure you have enough power to keep everything running smoothly.

Peace of Mind and Flexibility: Whether you're looking for a whole home backup generator or need an emergency generator for home use, the Nature's Generator Powerhouse provides the ultimate backup power generator solution. It offers peace of mind and reliable power during emergencies, power outages, or off-grid setups.

Nature’s Generator Powerhouse Gold PE System:  Consists of the Powerhouse, two 410W Power Panels (Plus consists of four Power Panels), and Powerhouse Transfer Kit.

• 120VAC and 240VAC up to 7200W Pure Sine Wave

• 4800Wh Batteries Included

• 2x 410W Mono PERC Solar Panel Set (Plus consists of 4 panels)

• 1x 240VAC 6-circuit Powerhouse Transfer Kit
• *Disclaimer: Our solar panels include the necessary connectors and wires but do not include any tools, hardware (mounting kit sold separately), etc. We highly recommend having the solar panels professionally installed by a certified installer.

A Closer Look:

Nature's Generator Powerhouse

• AC Output
  • 2 x 3600W 120 Volt
  • 1 x 7200W 240 Volt

• DC Output

  • 4 x USB Type A   1 x 12 Volt Output
  • 1 x USB Type C   1 x 48 Volt Output

  • 1 x 12V DC Port

• Capacity
  • 4800 Wh (Expandable with Power Pod)

• Charging Input
  • 2000W Solar Input - Expandable

  • 1000W Wind Input - Expandable

  • 1300W AC Wall Outlet Input

Nature's Generator Powerhouse Specifications:

• Inverter

• • Output Power: 7200 watt max

  • Output voltage: 240V Split Phase

  • Output voltage: 120V Single Phase

  • Output frequency: 60Hz

  • Output Sine Wave: Pure sine wave

  • Output Phase: Split phase

• Battery

• • Type: AGM Sealed Lead Acid

  • Capacity: 48V 100Ah (4800Wh)

  • Self-discharge: Recommend to recharge every 4 months

• Ports

• • USB -A Port:  5V, up to 3A (15W)

  • 12V DC Port: up to 20A (240W max)

  • Expansion Port: 350A fuse

• Charges

• • AC Charger: 1300W, 120V AC

  • AC Charger Indicator: red (charging) and green (charged)

  • Solar Charger: 2000W

  • Wind Charger: 1000W

• Dimensions
  • Powerhouse: 28 x 18 x 19 inches (720*466*472.8mm)

  • Powerhouse with wheel: 28 x 18 x 22.36 inches (720*466*568mm)

• Operating Temperature
  • 32-104 °F (0-40 °C)

• Storage Temperature
  • 23–111 °F (-5–45 °C)


• Weight
  • 434 lbs (197 kg)

Nature's Generator Powerhouse Power Panel:

• Power Rating and Characteristics

• • Maximum Power (Pmax): 410W

  • Cell Type: Mono PERC 182×91mm

  • No.of Half-cells: 108 (6×18)

  • Frame: Anodized Aluminum Alloy

• Front Glass
  • 3.2mm, Anti-Reflection Coating, High Transmission, Low Iron, Tempered Glass

• Junction Box
  • IP68 Rated, connector compatible with MC4

• Fire Rating
  • UL: Type 1, IEC: Class C

• Dimensions
  • 1724×1134×30mm (67.87×44.64×1.18 inch)

• Operating Temperature
  • -40℃~+85℃ (-40°F ~+185°F )

• Output Cables
  • 1200mm (47.24 inch)

• Weight
  • 20.5 kg (45.19 lbs)

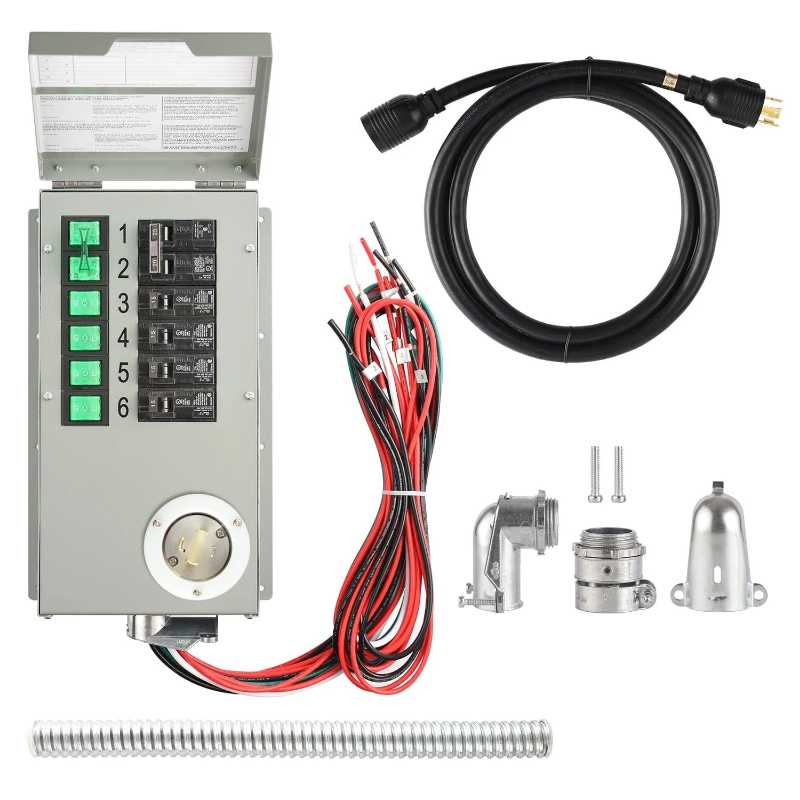

Nature's Generator Powerhouse Power Transfer Kit:

• Features and Details

• • As the Power Transfer Kit links Nature’s Generator Powerhouse to the existing power lines in your indoor load center, you can continue powering hardwired items like your ceiling lights or bulky items like your refrigerator without moving them around or other items in the tight corner that are difficult to be unplugged.

• Dimensions

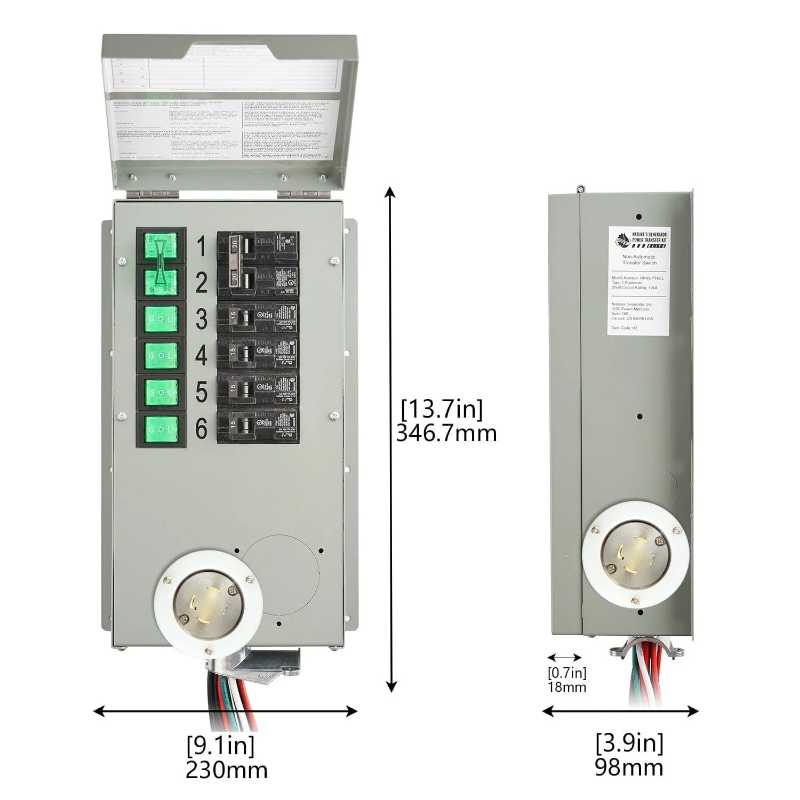

  • Dimensions : 9.1 inch x 13.7 inch x 3.9 inch (23.0 cm x 34.7 cm x 9.8 cm)

• How to Use
  • Fit the female connector of the included power cord into the power inlet of your Power Transfer Switch.

  • Insert the male plug into any of the AC outlets on the Nature's Generator.

• General
  • Voltage: 240V

  • Number of Circuits: 6 circuits

• Weight
  • Weight out of box: 10.1 lbs. (4.6 Kg)

Nature's Generator Powerhouse:

• 1 x Nature's Generator Powerhouse Generator
• 1 x Nature’s Generator Powerhouse Battery Storage
• 1 x AC Power Cord
• User Guide

Nature's Generator Power Panels:

• 2 x Nature’s Generator Powerhouse Power Panels (Standard)
• 1 x 50ft Nature's Generator Power Panel Cable (Standard)
• 4 x Nature’s Generator Powerhouse Power Panels (Plus)
• 1 x Branch Connector (Plus)
• 1 x 50ft Nature's Generator Power Panel Cable (Plus)

Nature's Generator Powerhouse Power Transfer Kit:

• 1 x  1 x PowerhousePower Transfer Kit
• 1 x Conduit for Power Trasnfer Kit
• 1 x Cable clamps for Power Transfer Kit
• 10 Foot 10AWG Power cord for Power Transfer Kit
• User Guide
• *IMPORTANT: Installation of the Power Transfer Kit must be performed by a qualified electrician in compliance with all applicable electrical codes. Do not charge Nature's Generator by wall through AC input port when using Power Transfer Kit.
