Nature's Generator Platinum PE System - Solar

Nature's Generator - Platinum - PE System - Portable Solar Generator Overview

At A Glance:

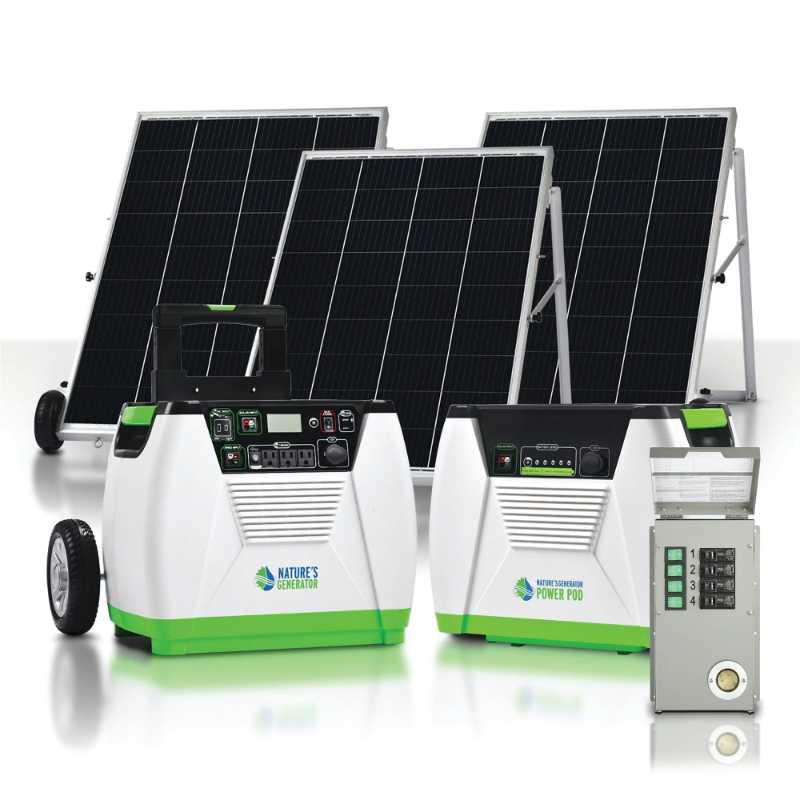

• Our Nature's Generator Platinum-PE System brings together our Nature's Generator Platinum System and the Power Transfer Kit.


• The Nature's Generator Platinum System is a system that allows you to generate and store extended power. With the addition of the Power Transfer Kit, you'll be able to link the existing power circuits in your indoor breaker panel to your Nature's Generator Platinum System. You'll have the ability to continue providing power to your most needed items without having to disconnect them from their current outlets.

• The Nature's Generator Platinum System provides a combined 1,920W hours of run time and with the included three 100W Nature's Power Panels you can continually use and recharge your system.

A Closer Look:

• 3 AC outlets deliver up to 1800-Watt of peak pure sine wave AC power
• Built-in 60 AH/720 WH SLA battery
• The monocrystalline solar panel provides up to 100-Watt of recharging power; some assembly required
• Additional 100 Amp /1.2 kWh sealed-lead acid battery
• Central LCD display shows system information

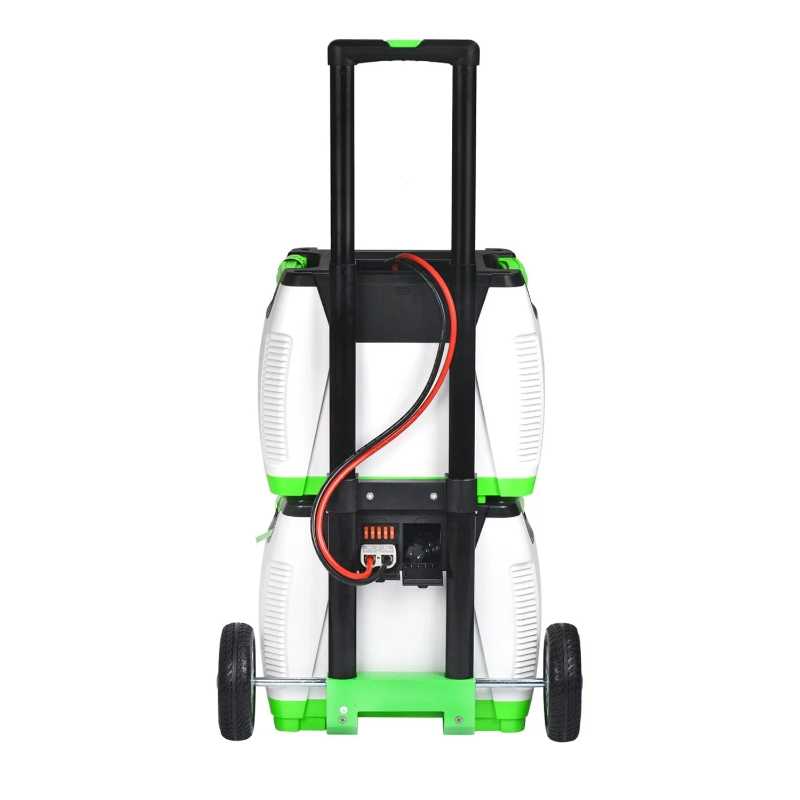

• Universal heavy-duty cart included and designed to work with the Nature's Generator, Nature's Generator Power Pod, or both. Some assembly is required.
• Integrated uninterrupted power supply (UPS) function
• 300-Watt solar charge controller and port
• 300-Watt wind generator charge controller and port
• 90-Watt built-in quick charge battery charger
• 2 USB ports deliver up to 3 Amp or 15-Watt output
• Built-in 600-Volt/175 Amp expansion port for connecting an unlimited amount of Nature's Generator Power Pods
• Using included AC Cord - Estimated recharge time: 10 - 15 hrs.
• Using the Nature's Generator Power Panel - Estimated recharge time: 10 - 15 hrs.
• Using the Nature's Generator Wind Turbine. (sold separately and charge times can vary)

• IMPORTANT: Installation of the Power Transfer Kit must be performed by a qualified electrician in compliance with all applicable electrical codes. Do not charge Nature's Generator by a wall through the AC input port when using the Power Transfer Kit.

Nature's Generator Specifications:

• Inverter

• • Output Power: 1800W max
  • Output Wave Form: Pure Sine Wave
  • Output Voltage: 120V
  • Output Frequency: 60Hz
• Battery

• • Type: AGM Sealed Lead Acid
  • Capacity: 12V 60Ah (720Wh)
  • Keep plugged in or recharge every 4 months of non-use
  • Built-in charge controller
  • Built-in low battery protection
• Ports

• • Three 120V household AC outlets
  • Two USB ports - 3A of combined power
  • One 12V DC port (240W max)
  • Expansion Port: 200A Fuse
  • Charging AC Input (90W)
  • Solar Charger: 200watt
  • Wind Input (300W Max)
• General

• • Generator dimensions with cart: 23 × 17 × 22 in.
  • Generator with cart : 83 lbs
  • Operating temperature: 32-104 °F (0-40 °C)
  • Storage Temperature: 23–111 °F (-5–45 °C)
  • Front LCD Display shows battery level, output information and more
  • LCD button turns on the LCD display
  • 12 months Limited Manufacturer Warranty

Nature's Generator Power Pod Specifications:

• Battery

• • Type: AGM Sealed Lead Acid
  • Capacity: 12V 100Ah (1,200Wh)
  • Keep plugged in or recharge every 4 months of non-use

• Ports

  • One 12V DC port (240W max)
  • Solar Input (200W Max)
  • Expansion Cord to connect to a Nature's Generator or Power Pod - 35in. Long
  • Expansion Port: 200A Fuse

• General

  • Power Pod Dimension: 18 x 12 x 15 in.
  • Weight out of box: 92 lbs
  • Operating temperature: 32-104 °F (0-40 °C)
  • Storage Temperature: 23–111 °F (-5–45 °C)
  • LED multi-color battery fuel gauge
  • Built-in charge controller
  • Built-in low battery protection
  • 12 months Manufacturer's Limited Warranty

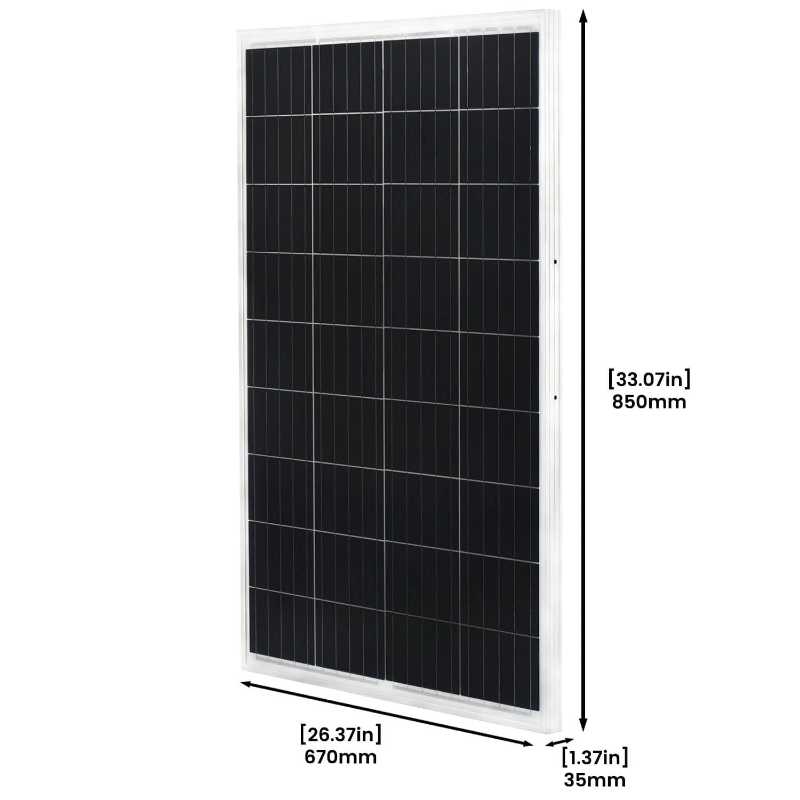

Nature's Generator Power Panel Specifications:

• General
  • 100-Watt panel
  • Cell Type: Monocrystalline
  • Voltage: 17 ~22V
  • Fuse: 8A
  • 12 months Manufacturer Limited Warranty
• Dimensions

  • 840 x 670 x 35 mm or 33 x 26.4 x 1.4 inch

• Weight out of box:

  • With cart and cable - 28 lbs

  • Without cart and cable - 15 lbs

Nature's Generator Power Transfer Kit Specifications:

• General
  • Product dimensions: 8 x 4.75 x 13.25 in.
  • Weight out of box: 12 lbs
  • Operating temperature: 32-104 °F (0-40 °C)
  • Storage temperature: 23–111 °F (-5–45 °C)
  • 12 months Manufacturer's Limited Warranty
• How to Use
  • Fit the female connector of the included power cord into the power inlet of your Power Transfer Switch.
  • Insert the male plug into any of the AC outlets on the Nature's Generator.

 What's Included:

• Nature's Generator:
  • 1 × 1800W Nature's Generator
  • 1 × Accessory Box (Heavy-Duty Cart)
  • 1 × User Guide
  • 1 x Power Cord (Inside back compartment)
  • Manual & Quick Start Guide

    *The heavy-duty cart is designed to hold two Nature's Generator Power Pod on top of Nature's Generator.
    *Assembly required.

• Nature's Generator Power Pod:
  • 1 x Nature's Generator Power Pod
  • 1 × User Guide
  • Hardware box
  • Manual & Quick Start Guide
  • User Manual
  • The Nature's Generator Power Pod also includes a compartment on the top section of the product. The fuse connector for expansion purposes is stored here. You can also store any other items inside the compartment that you may want to keep handy with your unit.

• Nature's Generator Power Panel:
  • 3 x 100W Monocrystalline Solar Panel
  • 3 × Accessory Box (Stand and Wheels)
  • 1 x MC4 branch connector
  • 2 x UL approved 12 gauge 50 foot panel cable
  • 1 × User Guide

• Nature's Generator Power Transfer Kit
  • 1 x Power Transfer Kit
  • 1 x Conduit for Power Trasnfer Kit
  • 1 x Cable clamps for Power Transfer Kit
  • 10 Foot 12AWG Power cord for Power Transfer Kit
  • 1 × User Guide
  • *IMPORTANT: Installation of the Power Transfer Kit must be performed by a qualified electrician in compliance with all applicable electrical codes. Do not charge Nature's Generator by wall through AC input port when using Power Transfer Kit.
